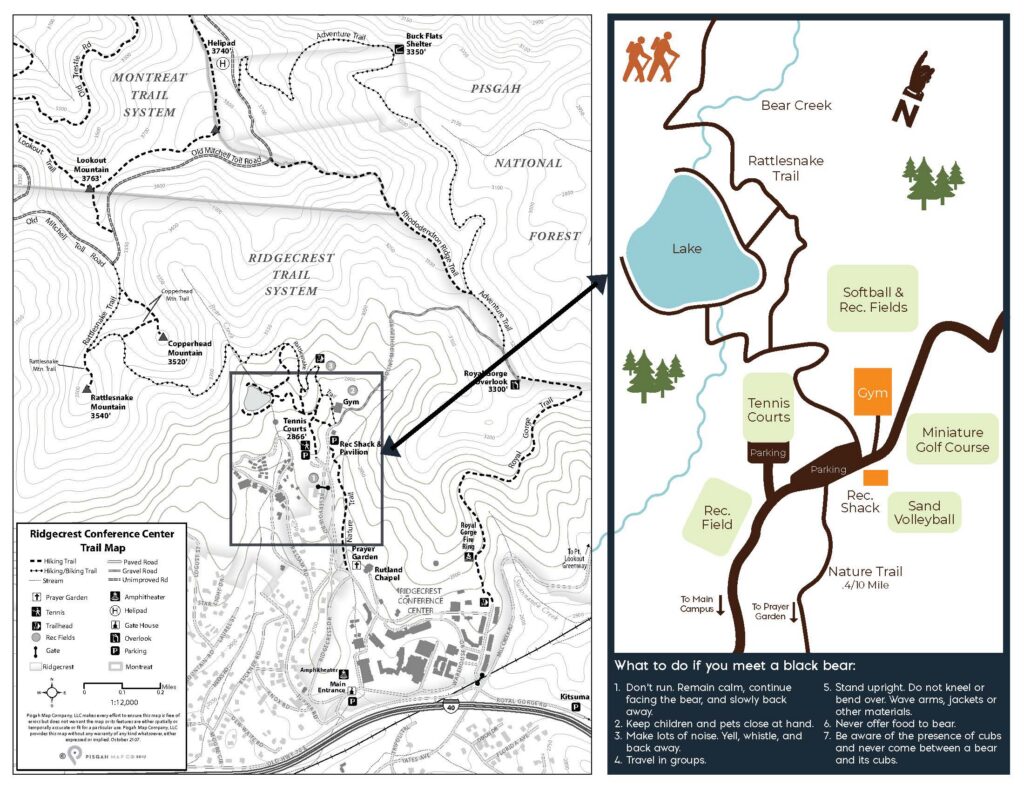

5 MILES

OF HIKING TRAILS

125K

SQFT

OF MEETING SPACE

SIX

AUDITORIUMS

WITH FREE AV!

20-20K

PERFECT FOR
ANY SIZE GROUP

1,600+

YOUTH BEDS

276

ADULT HOTEL
STYLE ROOMS

5 MILES

OF HIKING TRAILS

125K

SQFT

OF MEETING SPACE

FIVE

AUDITORIUMS

WITH FREE AV!

What makes Ridgecrest Conference Center a great place for faith-based meetings?

We are a ministry serving ministries like yours, offering first-class customer service within a loving, servant-minded, Christian environment. Before you even set foot on the property, our staff are praying for you, your event, and your guests. We understand the needs and unique challenges you may face when planning an event, and we will work tirelessly to help you and your guests experience all that Ridgecrest has to offer — on budget, with high impact, for God’s glory!

For more than 115 year’s Ridgecrest has been providing purposeful hospitality to our guests, allowing us to accomplish our mission of impacting lives for God’s glory. Ridgecrest Offers affordable accommodations, complimentary meeting space, and complimentary audiovisual in our auditoriums, we’ll take care of the details so you can focus on your purpose.

We are a ministry serving ministries like yours, offering first-class customer service within a loving, servant-minded, Christian environment. Before you even set foot on the property, our staff are praying for you, your event, and your guests. We understand the needs and unique challenges you may face when planning an event, and we will work tirelessly to help you and your guests experience all that Ridgecrest has to offer — on budget, with high impact, for God’s glory!

For more than 115 year’s Ridgecrest has been providing purposeful hospitality to our guests, allowing us to accomplish our mission of impacting lives for God’s glory. Ridgecrest Offers affordable accommodations, complimentary meeting space, and complimentary audiovisual in our auditoriums, we’ll take care of the details so you can focus on your purpose.

Campus & Meeting Spaces

Click the tab to see images and info about each auditorium/meeting space.

Click the image or the name of the auditorium below for more info about each meeting space.

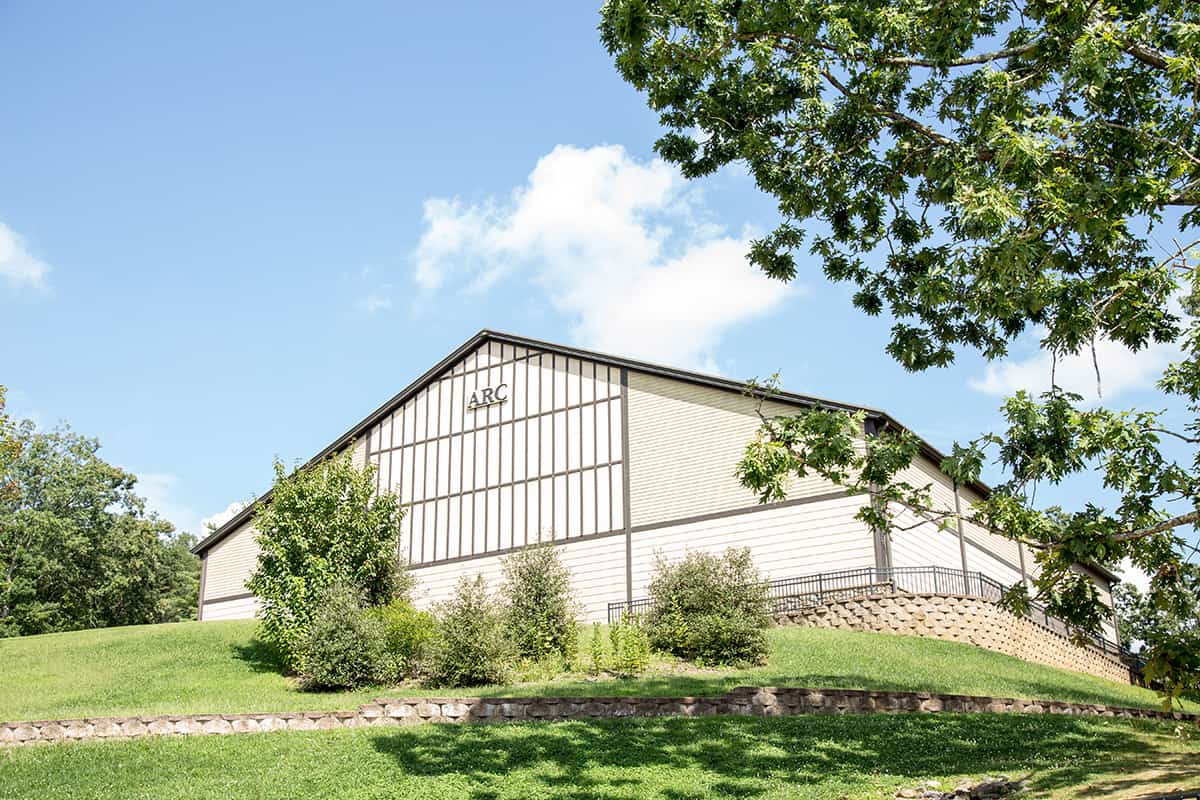

ARC
Ivy

Spilman Auditorium

Auditorium: 2,000 capacity
Classrooms: 3 to 5 rooms based on desired partition usage

Spilman Auditorium is one of the iconic buildings on Ridgecrest’s grounds. From worship concerts to commissioning missionaries about to embark on a lifetime of service, this historic auditorium has hosted countless meetings with the Spirit of God at work.

One look at the sound booth conveys limitless sound, stage, lighting and special effect capabilities for this 2,000-seat facility, making it ideal for general sessions, concerts, worship services or large meetings. Spilman also contains meeting spaces large enough for any sized gathering—meetings, teaching sessions and conferences. Guests are sure to enjoy this comfortable environment to worship and connect with God and others.

Diagrams & AV Equipment Rentals

Use of Spilman Auditorium requires an Audiovisual technician at $250.00 per day.



Technical Rider

Sound System

Mixers: Soundcraft Vi600

Input Devices:
(6) Wireless Handhelds:
(2) Shure ULXD SM87As
(2) Shure UHF SM87As
(2) Shure UHF with Earthworks WL40V capsules

Stage Monitors:
(8) Aviom A360 units with body packs
(8) Monitors upon request

Amplifiers:
(3) Powersoft X4 Dante: Main Line Arrays LCR
(1) Powersoft X4 Dante: Subwoofers
(1) Powersoft 4804 DSP+D: Rear Upper LCR Delays
(5) Powersoft Quattrocanali 2404 DSP+D: Upper/Under Balcony Delays, Stage Lip Fills, Choir Monitors & Stage Monitors
(1) Duecanali 804 DSP+D: Rear Under Balcony Delays LCR

Processing Gear:
Powersoft Built-in DSP via ArmoniaPlus

Speakers:
Main Cluster: LCR (18) EAW KF730
Under Balcony: (13) EAW MK8196
Upper Balcony: (8) EAW MK8196 and (3) EAW AX364
Stage Lip: (4) EAW UB52
Sub Woofers: (3) EAW BH622e custom order
Choir Monitors: (2) EAW MK2364



Lighting System

Console and Other Control Equipment:
Jands Vista L5
ETC Digital Address panels (booth, stage right, stage left, key-on panel in rear of the auditorium on east side)
ETC Distributed DMX Driver Unit (3 DMX OUT controllers and 1 DMX IN controller)

Moveable Fixtures:
(1) Beta Spot
(8) Chauvet Q-Spot 460 LED
(7) Chauvet Q-Wash 460
(2) Elektralite Pancake RGBW v2

Non-Moveable Fixtures:
Approximately (25) ETC Source Four Ellipsoidals
Approximately (28) ETC Source Four Pars
(6) Chauvet COLORdash Par-Hex
(11) ETC Selador Paletta 42
(2) Colorado 1 Tri Tour TOUR
(3) LED Can Lights
(8) American DJ MEGA panel LED

Dimmers:
(192) ETC 2.4kw Sensor Dimmers (includes House and Stage dimmers) with ETC CEM 3 Power controllers

Connection Points:
Full console connections in control booths and in stage right closet on stage.

DMX output connections on the left and right of the stage and several locations in the catwalk.

(12) Dimmer power connections on stage level

Lighting System Technical Notes:
Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.



Video System

Projector:
(2) Eiki 800U HD Video Projectors (12,000 ANSI Lumens)

Screen:
(2) Da-Lite 10’x17’ fixed screens to the left and right of the stage

Media Room Devices:
(1) BlackMagic Atem Production 4k switcher
(1) Blackmagic Design ATEM 1 M/E Advanced Panel
(2) HR824 MK2 Studio Monitor
(2) BlackMagic Design SDI/HDMI Converters
(1) Netgear Prosafe/GS105/ Gigabit Switch
(2) Mac Desktops



Special Equipment Brought in by Performers

It is possible to use your own complete sound system in Spilman Auditorium. We can provide two electrical hook-ups for you to use, which includes one single-phase 100 amp outlet and one three-phase 200 amp outlet.



Lighting System Technical Notes

In order to best serve the needs of all of our events, we have some guidelines concerning the use of the equipment in Spilman Auditorium.

Due to the location of power connections, there are a limited number of places where fixtures may be placed.

Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.

Our system is versatile enough to handle many different kinds of moving fixtures and types of dimmers as long as they are DMX compatible.

Remember that programming time is normally at a minimum, so using extra fixtures may or may not be possible unless we have the equipment well ahead of time.

Our system is versatile enough that if an event wants to bring in their own console or computer with lighting software and hardware, we can adapt to allow the event’s lighting designer to patch into our system. However, that would render our system useless to be able to accommodate the outside equipment.



Video System Technical Notes

Other video configurations may be considered if time allows before AND after an event. When events are scheduled closely together, it is difficult to re-configure the video system, but we will work with the Event Planner to find the best solution possible.

Other computers may be brought in for PowerPoint or some other presentation program. You must bring your own HDMI adapter if needed.



Cue System

A “house intercom system” with several headsets is available. Intercom headsets can be positioned at or near any mic input in the auditorium. They can be used by Crew and Program personnel during programs to aid with program cues and directions. If the event should require these, the Ridgecrest technical staff must be made aware of this request at least two weeks prior to the event.



Curtains

The main curtain is maroon color and can be closed when the stage apron area is to be used. There is a white cyc curtain that can be used in front of the back wall of the stage. Several black “legs” hang in the backstage area to mask instruments and activity backstage.



Rigging

Five rigging trusses are located on stage. Three of our trusses are used for our current light positions and cannot be used to hang banners. All rigging points are motorized and easily controlled.



Banners

All banners should have grommets (eyelets sewn or attached at the edges) – one in each corner and all along the top with a maximum distance of 24 inches between grommets. Banners with only a sleeve sewn into the top will sag in the middle. Only banners less than 15 feet side to side can be hung in front of the main curtain. Larger banners up to a maximum length of 40 feet (side to side) must be hung from the third or fifth rigging truss. Larger banners can sometimes interfere with backstage lighting.



Instruments

The auditorium features a Yamaha AvantGrand N3X grand piano. This piano remains on stage at all times. Please submit a special request along with your stage plot and input list to use this piano with at least 2 weeks advance notice. No tuning fee is applicable or necessary as this is a digital hybrid grand piano.

A drum set, designed specifically for Spilman Auditorium, is available for rent. More information is available here.

The sound system has been designed to accommodate any type of organ that is brought in by the vendor. We have worked with Allen Organs to design an organ-friendly system that can interface with any type of organ. We will only need an XLR or 1/4” output from the organ.



Emergency Situations

In case of power failure, an emergency generator will power a few emergency auditorium lights, exit lights and stairwell lights. The generator does not supply electricity to the sound and stage lighting. North Carolina State law requires Event Planners to notify event attendees of the location of emergency exits in their meeting space.



Spilman Auditorium Statistics

Interior Dimensions — 163’ x 95’
(rear wall to back stage wall x side wall to side wall) — 163’ x 95’
Foyer — 18’ x 95’
Front Porch — 21’ x 95’
Ceiling Height (from main floor – average) — 30’
Main floor to Ceiling under Balconies — 11’ 6”
Distance between Side Balcony — 56’
Length of Side Balconies (from stage end to rear balcony) — 102’



Stage Area

Height of Stage from Main Floor — 3’ 6”
Stage to front row — 10’ 10”
Apron Depth (edge of stage to main curtain) — 15’ 6”
Full Apron Width (at main curtain) — 55’
Full Stage Depth (edge of the stage to back of stage wall) — 33’ 6”
Position of First Rigging point (front edge of stage) — 15’ 3”
Position of Second Rigging Point (from front edge of stage) — 22’ 6”
Proscenium Arch (main curtain fully opened-width x height) — 46’ 19’
Backstage Width — 60’ 4”
Stage Ceiling Height
(Average stage floor to lighting bars, catwalk, etc.) — 21”
Video Projection Screen Size (3) — 10’ H x 17’ W
Stage to Front Lighting Bar — 21’
(Front edge of stage to a point perpendicular to lighting instruments)

Technical Form

This completed form must be returned to your Event Coordinator at least two weeks prior to your event in order for our team to fulfill the needs of your event.

MM slash DD slash YYYY

Stage Needs (Please fill in all that apply):

Choir: Chair risers are available for up to 150 people

64 stage inputs and 8 monitor mixes available

Band: Instruments for your event can be rented through your Event Coordinator. If renting equipment please let us know 16 days in advance.

Please send in any Input List, Stage Plot, and Tech Rider the band may have.

The use of all audio visual equipment in Spilman Auditorium is $250 per day and includes all necessary audio visual technicians. Any technician required to stay after quiet hours will be charged at $50 per person, per hour. Please contact A/V Conference Services to discuss your audio visual needs.

Acceptance

Johnson Spring

Ballroom: 500 capacity
Boardroom: 1 room, seating for 12
Classrooms: 5 to 23 rooms based on desired partition usage

Located in the heart of Ridgecrest Conference Center, Johnson Spring is our flagship meeting facility, providing various meeting options for your large or small group. This 46,250 square foot state-of-the-art facility gives meeting planners the utmost flexibility to ensure a successful meeting, convention, or retreat. Johnson Spring connects our campus with covered walkways and elevators for easy access between sleeping rooms, meeting rooms and the dining room.

Technical Rider

Sound System

Mixer:
Midas M32

Outputs:
Mix LR: Main LR Outputs
Bus 1-5 – FOH Monitoring Sends
Bus 13-16 – FX
M/C – Subs

Stage Monitors:
Wedges Available Upon Request
(5) Monitor Mixes Total
(3) Sennheiser ew 300 IEM G3 Systems

We have two monitor channels and three In-ear monitors that can be simultaneously used

Speakers:
Main Fills: LR (4) EAW NT29
Sub Woofers: (2) EAW NT22

Processing Gear:
Floor Position: Digital signal processing is supplied via the Midas M32.

Input Devices:
(4) Shure ULX Series Wireless Handhelds
(2) Shure ULX Series Wireless Body Packs
Wired Microphones: Other types are available upon request.

Johnson Spring 2 A-C has a total of 16 inputs supplied via the Behringer S16 digital stage box at the stage. Local inputs are supplied at Front of House.



Lighting System

Console:
LSC Stage Setter 8 Channel with DMX Wireless Transmitter

Non-moveable Fixtures:
(4) COLORdash Par- Hex lighting fixtures.

Dimmers:
(1) Leprecon ULD-360-HP with Wireless DMX Receiver

Lighting System Technical Notes:
Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.



Video Systems

Projection/Screen:
DVS Optic-3X LED wall with a resolution of 1880×600

Switching Gear:
(1) Kramer VP-734 Scaler/Switcher



Emergency Situations

In case of power failure, an emergency generator will power a few emergency auditorium lights, exit lights and stairwell lights only. The generator does not supply electricity to the sound and stage lighting. North Carolina State law requires Event Planners to notify event attendees of the location of emergency exits in their meeting space.



Johnson Spring 2 A-C Statistics

Interior Dimensions (rear wall to backstage wall x sidewall to sidewall) — 120’ x 68’
Ceiling Height (from main floor – average) — 12’
Seating Capacity (depends on room set-up) — 400 – 600



Stage Area

Height of Stage from Main Floor — 2’
Stage Ceiling Height — 10’
Video Projection Screen Size (2) — 9’ H x 12’ W
Portable Staging (9 pieces) — 12’ x 24’

Technical Form

This completed form must be returned to your Event Coordinator at least two weeks prior to your event in order for our team to fulfill the needs of your event.

MM slash DD slash YYYY

Stage Needs (Please fill in all that apply):

16 digital total stage inputs and 5 monitor mixes available

Band: Instruments for your event can be rented through your Event Coordinator. If renting equipment please let us know 16 days in advance.

Please send in any Input List, Stage Plot, and Tech Rider the band may have.

Projection: It is our understanding that you will supply a computer.

Format (Please bring your VGA adapter)
Acceptance

Mountain Laurel

Auditorium: 214 capacity, theater-style fixed seating
Boardroom: 1 room, seating for 12
Classrooms: 5 to 8 rooms based on desired partition usage

Mountain Laurel has meeting space and an auditorium ideal for mid-sized events. The ground floor features five spacious classrooms equipped with easy-to-adjust partitions for small or large groups. The flexibility of Mountain Laurel makes it ideal for group meetings, teaching sessions, boards of directors’ meetings, conferences or seminars. A small, private conference room is also available near the classrooms when a quiet atmosphere is desired.

Jim Henry Auditorium offers theater-style meeting space. With 214 tiered seats and gently sloping floors, it offers excellent visibility from virtually every seat in the room. Several widescreen monitors coupled with the latest in computerized audio systems make this a premier teaching facility. It is conveniently located steps away from Mountain Laurel’s hotel rooms and conveniently located on campus, adjacent to Johnson Spring and the ARC.

Technical Rider

Sound System

Mixer:
Behringer X32

Processing Gear:
Ashly Audio ne4800 Network-Enabled Protea DSP Processor

Amplifiers:
(2) Crown CH/Series
(1) Ashly PE-1800 Series

Input Devices:
(2) Shure ULX Wireless Lapels
(2) Shure ULX Wireless Handhelds
Wired Microphones: Available upon request

Speakers:
Main Speakers: (3) JBL MS28
Loudspeaker

Delay Fills:
(15) JBL Control 24CT; (4) JBL Control 19CS



Video System

Projector:
(2) Eiki LC-XL 100 – 5000 Lumens
Native Resolution 4:3

Screen:
(2) Da-Lite 7’ x 5’3”

Video Sources:
*Video sources may be added depending on switching inputs and availability of equipment.

Video Line Locations:
(1) Stage Input
(1) Sound Booth Input

Video Switching Gear:
(1) Kramer VP-729 Scaler/Switcher



Lighting System

Console:
LSC Stage Setter 8 Channel with DMX Wireless Transmitter

Non-moving fixtures:
(2) Par 46 Can Lights

Lighting System Technical Notes:
Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.



Special Equipment Brought in by Performers

It is possible to use your own equipment or complete sound system in Jim Henry, but we do not recommend this option since we are unable to supply any power except the 110 volts that is found on stage.



Technical Notes

Other video configurations may be considered if time allows before AND after an event. When events are scheduled closely together, it is difficult to re-configure the video system, but we will work with the Event Planner to find the best solution possible.

Other computers may be brought in for PowerPoint or some other presentation program. You must bring your own VGA adapter if a Mac is being used.



Lighting Technical Notes

The auditorium is not equipped with a lighting bar. Only the house lighting is available.



Emergency Situations

In case of power failure, an emergency generator will power a few emergency auditorium lights and exit lights. The generator does not supply electricity to the sound and stage lighting. North Carolina State law requires Event Planners to notify event attendees of the location of emergency exits in their meeting space.



Jim Henry Statistics

Interior Dimensions (rear wall to backstage wall x sidewall to sidewall) — 59’ 6” X 48’ 8”
Ceiling Height (from floor to center of roof) — 11’ 9”
Seating Capacity — 214



Stage Area

Height of Stage from Main Floor — 1’ 9”
Full Stage Depth (center edge of stage to back wall) — 10’ 2”
Full Stage Width — 39’
Stage Ceiling Height — 10’
Video Projection Screen Size (2) — 7’ X 5’ 3”

Technical Form

This completed form must be returned to your Event Coordinator at least two weeks prior to your event in order for our team to fulfill the needs of your event.

MM slash DD slash YYYY

Stage Needs (Please fill in all that apply):

9 stage inputs and 1 monitor mix available

Band: Instruments for your event can be rented through your Event Coordinator. If renting equipment please let us know 16 days in advance.

Please send in any Input List, Stage Plot, and Tech Rider the band may have.

Projection: It is our understanding that you will supply a computer.

Format (Please bring your VGA adapter)
Acceptance

Rhododendron/Dogwood Complex

Auditorium: 300 capacity
Classrooms: 2 to 7 rooms based on desired partition usage

The Rhododendron/Dogwood complex offers flexibility and functionality with its spacious classrooms and auditorium, as well as its centralized location. Event planners find this facility ideal for mid-sized events, such as meetings, teaching sessions, conferences or banquets and receptions. It is connected to Rhododendron and the dining room, so guests can come and go with ease.

The Dogwood meeting rooms are just above the dining room. Adjustable partitions can vary dimensions from 2 to 7 rooms to accommodate your specific needs. Rhododendron Auditorium is a flexible seating facility for up to 320 people and features an analog audio system and a 4:3 ratio single-screen projection system.

Technical Rider

Sound System

Mixers:
Allen & Heath QU-16

Input Devices:
(2) Shure ULXP4 Receiver and Beta 87A Wireless Handheld Microphones
(1) Shure ULXP4 Receiver and Wireless Body Pack
Wired Microphones: Available upon request
Tascam CD-160 MKII

Stage Monitors:
Wedges Available
(4) Monitor Mixes Available

Speakers:
Mains: (2) EAW LA460 series
Sub Woofer: (1) Community Sub

Amplifiers:
(1) QSC CX1202V Direct 70V
(1) Mackie m1200
(1) Mackie m2600

Processing Gear:
(1) DriveRack® PA Equalization &
Loudspeaker Control System Process



Lighting System

Console:
NSI MC 7008 Memory Lighting Console

Non-Moving Fixtures:
(4) Par 46 Can Lights
(1) Par 56 Can Light
(4) American DJ Mega Panel LED

Lighting System Technical Notes:
Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.



Video System

Projector:
(1) Hitachi CP-X615 LCD (4000 Lumens)
Native Resolution 1024×768

Screen:
(1) Da-Lite 7’6”x10’

Switching Gear:
(1) Kramer VP-724XL Switcher/Scaler

Video Sources:
*Video sources may be added depending on switching inputs and
availability of equipment.



Emergency Situations

In case of power failure, an emergency generator will power a few emergency auditorium lights, exit lights and stairwell lights. The generator does not supply electricity to the sound and stage lighting. North Carolina State law requires Event Planners to notify event attendees of the location of emergency exits in their meeting space.



Rhododendron 1 A-C Statistics

Interior Dimensions (rear wall to backstage wall x sidewall to sidewall) — 97’ x 51’
Seating Capacity — 350 – 400



Stage Area

Height of Stage from Main Floor — 1’ 9”
Height of Ceiling from Stage Floor — 10’ 6”
Full Stage Depth (center edge of stage to back wall) — 11’ 6”
Full Stage Width — 37’
Video Projection Screen Size (1) — 7’ 6” X 10’

Technical Form

This completed form must be returned to your Event Coordinator at least two weeks prior to your event in order for our team to fulfill the needs of your event.

MM slash DD slash YYYY

Stage Needs (Please fill in all that apply):

Up to 12 stage inputs and 2 monitor mixes available

Band: Instruments for your event can be rented through your Event Coordinator. If renting equipment please let us know 16 days in advance.

Please send in any Input List, Stage Plot, and Tech Rider the band may have.

Projection: It is our understanding that you will supply a computer.

Format (Please bring your VGA adapter)
Acceptance

Auditorium: 700 capacity
Room Size: 100×100

Ridgecrest’s ARC is a prime location for large-group sessions with advanced audiovisual and lighting equipment, widescreen monitors, projection screen and a large stage—all complementing this versatile venue. This facility offers unique flexibility as an auditorium, seating up to 700 people. Create great sound with state-of-the-art audio and video projection capabilities perfect for big bands. The ARC is located adjacent to Maple, Walnut and Woodland.

Diagrams & AV Equipment Rentals

ARC Stage Diagram

Technical Rider

Sound System

Mixers:
Midas M32 (digital)

Processing Gear:
Built into M32

Input Devices:
(2) Shure UC Series UHF Wireless Body Packs/Headsets
(2) Shure SM87A Wireless Handhelds
Wired Microphones: Available upon request

Stage Monitors:
There are 8 Aviom 16ii units that have 12 channels. We can also use two monitor channels, but it will use 2 channels from the Aviom units limiting us to 10 channels for the Avioms

Speakers:
(4) EAW AX 366
(2) EAW UB82e
(2) EAW MK2394
(2) Danley TH-115



Lighting System

Console:
Vista S1 Control surface with Vista 3 by Chroma-Q on a Windows Computer

Dimmers:
(2) NSI DS824 Rack Dimmers

Non-Moving Fixtures:
(10) ETC Ellipsoidal Pars
(4) Blizzard Rokbox EXA
(1) ETC Selador Paletta 42

Moving Fixtures:
(2) Martin Mac 250 Washes
(6) Martin Krypton 250 Spots

Lighting System Technical Notes:
Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.



Video System

Screen:
(1) Fixed Da-Lite 12’3” x 21’ centered on back wall

Projector:
(1) Eiki LC-X7 Projector (9000 Lumens) 1024×768 Resolution

Video Sources:
*Sources may be added depending on switching inputs and availability of equipment.

Video Line Locations:
HDMI feeds located in the booth that run to the projectors.
(1) Cat5-link for video monitor on stage



Special Equipment

It is possible to use your own complete sound system in the ARC. We can provide two electrical hook-ups for you to use, which includes one single-phase 100 amp outlet and one three-phase 200 amp outlet.



Lighting System Technical Notes

Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.

If there is plenty of time before AND after an event, slight adjustments to the lighting may be possible. Most of the time, this will not be the case due to time limitations between events.

Our system is versatile enough that if an event group wants to bring in their own console or computer with lighting software and hardware, we can adapt to allow the event’s lighting designer to patch into our system.



The ARC Statistics

Interior Dimensions — 100’ x 100’
(rear wall to back stage wall x side wall to side wall)
Ceiling Height (from floor to center of roof) — 30’
Seating Capacity — 700



Stage Area

Height of Stage from Main Floor — 4’ 11”
Full Stage Depth (center edge of the stage to back wall) — 24’
Full Stage Width — 62’
Video Projection Screen Size — 12’ 3” x 21’

Technical Form

This completed form must be returned to your Event Coordinator at least two weeks prior to your event in order for our team to fulfill the needs of your event.

MM slash DD slash YYYY

Stage Needs (Please fill in all that apply):

28 stage inputs and 2 monitor mixes + 8 Avioms available

Band: Instruments for your event can be rented through your Event Coordinator. If renting equipment please let us know 16 days in advance.

Please send in any Input List, Stage Plot, and Tech Rider the band may have.

Projection: It is our understanding that you will supply a computer.

Format (Please bring your VGA adapter)
Acceptance

Ivy

Classrooms: 11 rooms on 2 floors, 45-50 capacity each

Event planners will find our modern Ivy classrooms perfect for conference, seminar, and retreat breakout needs. Ivy offers 11 breakout rooms on two floors. Arranged in theatre-style seating, each room accommodates up to 50 people. Built-in screens and projectors make it easy for presenters, and a covered natural patio overlooking the Ivy firepit is available for breaks and catering space. Ivy is centrally located on the west side of Ridgecrest’s campus between Mountain Laurel and Pritchell guest rooms and Spilman and Lambdin Auditoriums.

Diagrams & AV Equipment Rentals

Lambdin

Auditorium: 450 capacity, chair seating
Classrooms: 4 rooms, capacity 36-50 each

Lambdin is a perfect venue when your group wants some great sound. Located behind the Spilman facilities, Lambdin’s recently-remodeled interior is equipped with a digital audio system and widescreen format projection system. Lambdin can be arranged with theater-style seating for up to 450. The stage platform is big enough for a small band, choir and speakers. This facility also includes 4 adjacent breakout rooms, which can hold 36-50 people each. Lambdin is perfect for event planners who want all of their space in one building and prefer a more private, intimate setting for their event. Tens of thousands of students recall fond memories made in Lambdin. Your group is about to make even more!

Diagrams & AV Equipment Rentals
Technical Rider

Sound System

Mixer:
Behringer X32 – 32 channels (24 channels on stage)

Stage Monitors:
(8) Aviom A-16II Personal Mixers [Wired] (musicians must supply their own ear buds)

Speakers:
(2) QSC K12
(2) QSC K10
(1) Danley TH-115
Processing Gear:
Built into Behringer X32

Input Devices:
(2) Shure SM87A wireless handheld mics
(2) ULX Headset mics
Wired Microphones: Available upon request



Lighting System

Non-Moving Fixtures:
(4) Blizzard RokBox 5 RGBA W



Lighting System Technical Notes

Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.



Video System

Projector:
(1) Eiki LC-xl-100 (5,000 Lumens)
Native Resolution 1024×768

Switching Gear:
(1) Kramer VP-719XL Switcher/Scaler



Video System Technical Notes

The only input available in this venue is VGA. Other input types can be accommodated with a VGA adapter. Please bring such adapter(s) as needed.



Emergency Situations

In case of power failure, an emergency generator will power a few emergency auditorium lights and exit lights. The generator does not supply electricity to the sound and stage lighting. North Carolina State law requires Event Planners to notify event attendees of the location of emergency exits in their meeting space.



Lambdin 1 A-C Statistics

Stage Area:
Full Stage Depth (center edge of stage to back wall) — 16’ 8”
Full Stage Width — 44’ 3”
Height of Stage from Main Floor — 31’
Height of Ceiling from the Stage Floor — 14’
Video Projection Screen Size — 16’ x 9’
Interior Dimensions of Auditorium — 88’ 6” x 73’
Seating Capacity — 450

Technical Form

This completed form must be returned to your Event Coordinator at least two weeks prior to your event in order for our team to fulfill the needs of your event.

MM slash DD slash YYYY

Stage Needs (Please fill in all that apply):

24 stage inputs and 8 Avioms available

Band: Instruments for your event can be rented through your Event Coordinator. If renting equipment please let us know 16 days in advance.

Please send in any Input List, Stage Plot, and Tech Rider the band may have.

Projection: It is our understanding that you will supply a computer.

Format (Please bring your VGA adapter)
Acceptance

Rutland Chapel

Auditorium: 200 capacity
Room Size: 55’ × 36’

Quietly tucked away behind towering maples and oaks sits this charming 200-seat wood and stone auditorium. One of Ridgecrest’s highest points, the traditional reverence of Rutland’s interior is complemented by the beauty visible through the many large glass windows. Warm, wooden beams add character to this uniquely wonderful auditorium. Rutland provides sound and video projection capabilities.

Diagrams & AV Equipment Rentals
Technical Rider

Sound System

Mixer:
Allen & Heath SQ-5 48-Channel / 36-Bus Digital Mixer

Input Devices:
(2) Shure UC Series Wireless Handheld
(1) Shure UC Series Wireless Body Pack & Headset

Stage Monitors:
(2) QSC E10 Stage Monitors (only 1 monitor mix available)

Speakers:
Mains: (2) EAW KF300e
Subs: (2) JBL MPRO MP418S

Amplifiers:
1 Mackie FR Series M2600
1 Powersoft X4
1 QSC CX302V
1 QSC PLX 2402

Processing Gear:
Built into amplifiers and SQ5



Lighting System

Lighting System Technical Notes:

(4) Electralite Stingray Mini, 60 Watt fixtures
(3) Electralite Fresnel RGBW, 350 Watt fixtures

Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.



Video System

Projection:
LED Wall (11.6”W x 6.4”H)

Screen:
(1) Da-Lite 9’ x 12’

Switching Gear:
(1) Inline IN1403

Video Sources:
*Video sources may be added depending on switching inputs and availability of equipment.

Video Line Locations:
HDMI located in the booth runs to the LED Wall



Special Equipment Brought in by Performers

It is possible to use your own equipment or complete sound system in Rutland, but we do not recommend this option since we are unable to supply any power except the 110 volts that is found on stage.



Technical Notes

Other video configurations may be considered if time allows before AND after an event. When events are scheduled closely together, it is difficult to re-configure the video system, but we will work with the Event Planner to find the best solution possible.



Emergency Situations

In case of power failure, an emergency generator will power a few emergency auditorium lights and exit lights only. The generator does not supply electricity to the sound and stage lighting. North Carolina State law requires Event Planners to notify event attendees of the location of emergency exits in their meeting space.



Rutland Chapel Statistics

Interior Dimensions — 55’ x 36’
(rear wall to backstage wall x sidewall to sidewall) — 36’
Ceiling Height (from floor to center of roof) — 22’ 6”
Seating Capacity (chairs) — 250 – 300



Stage Area

Height of Stage from Main Floor — 55’ x 36’
Full Stage Depth (center edge of stage to back wall) — 36’
Full Stage Width — 22’ 6”
Stage Ceiling Height — 20’

Technical Form

This completed form must be returned to your Event Coordinator at least two weeks prior to your event in order for our team to fulfill the needs of your event.

MM slash DD slash YYYY

Stage Needs (Please fill in all that apply):

20 stage inputs and 1 monitor mix available

Band: Instruments for your event can be rented through your Event Coordinator. If renting equipment please let us know 16 days in advance.

Please send in any Input List, Stage Plot, and Tech Rider the band may have.

Projection: It is our understanding that you will supply a computer.

Format (Please bring your VGA adapter)
Acceptance

Crystal Springs Amphitheater

Outdoor amphitheater: 250 capacity

The Crystal Springs Amphitheater is a welcome addition to the Ridgecrest meeting facilities. This outdoor amphitheater is located next to Spilman Auditorium to the left of our facility entrance. It seats up to 250 people, and is the ideal spot for an outdoor movie or concert. And there is plenty of green space for field games!

Auditorium: 2,000 capacity
Classrooms: 3 to 5 rooms based on desired partition usage

Spilman Auditorium is one of the iconic buildings on Ridgecrest’s grounds. From worship concerts to commissioning missionaries about to embark on a lifetime of service, this historic auditorium has hosted countless meetings with the Spirit of God at work.

One look at the sound booth conveys limitless sound, stage, lighting and special effect capabilities for this 2,000-seat facility, making it ideal for general sessions, concerts, worship services or large meetings. Spilman also contains meeting spaces large enough for any sized gathering—meetings, teaching sessions and conferences. Guests are sure to enjoy this comfortable environment to worship and connect with God and others.

Diagrams & AV Equipment Rentals

Use of Spilman Auditorium requires an Audiovisual technician at $250.00 per day.



Technical Rider

Sound System

Mixers: Soundcraft Vi600

Input Devices:
(6) Wireless Handhelds:
(2) Shure ULXD SM87As
(2) Shure UHF SM87As
(2) Shure UHF with Earthworks WL40V capsules

Stage Monitors:
(8) Aviom A360 units with body packs
(8) Monitors upon request

Amplifiers:
(3) Powersoft X4 Dante: Main Line Arrays LCR
(1) Powersoft X4 Dante: Subwoofers
(1) Powersoft 4804 DSP+D: Rear Upper LCR Delays
(5) Powersoft Quattrocanali 2404 DSP+D: Upper/Under Balcony Delays, Stage Lip Fills, Choir Monitors & Stage Monitors
(1) Duecanali 804 DSP+D: Rear Under Balcony Delays LCR

Processing Gear:
Powersoft Built-in DSP via ArmoniaPlus

Speakers:
Main Cluster: LCR (18) EAW KF730
Under Balcony: (13) EAW MK8196
Upper Balcony: (8) EAW MK8196 and (3) EAW AX364
Stage Lip: (4) EAW UB52
Sub Woofers: (3) EAW BH622e custom order
Choir Monitors: (2) EAW MK2364



Lighting System

Console and Other Control Equipment:
Jands Vista L5
ETC Digital Address panels (booth, stage right, stage left, key-on panel in rear of the auditorium on east side)
ETC Distributed DMX Driver Unit (3 DMX OUT controllers and 1 DMX IN controller)

Moveable Fixtures:
(1) Beta Spot
(8) Chauvet Q-Spot 460 LED
(7) Chauvet Q-Wash 460
(2) Elektralite Pancake RGBW v2

Non-Moveable Fixtures:
Approximately (25) ETC Source Four Ellipsoidals
Approximately (28) ETC Source Four Pars
(6) Chauvet COLORdash Par-Hex
(11) ETC Selador Paletta 42
(2) Colorado 1 Tri Tour TOUR
(3) LED Can Lights
(8) American DJ MEGA panel LED

Dimmers:
(192) ETC 2.4kw Sensor Dimmers (includes House and Stage dimmers) with ETC CEM 3 Power controllers

Connection Points:
Full console connections in control booths and in stage right closet on stage.

DMX output connections on the left and right of the stage and several locations in the catwalk.

(12) Dimmer power connections on stage level

Lighting System Technical Notes:
Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.



Video System

Projector:
(2) Eiki 800U HD Video Projectors (12,000 ANSI Lumens)

Screen:
(2) Da-Lite 10’x17’ fixed screens to the left and right of the stage

Media Room Devices:
(1) BlackMagic Atem Production 4k switcher
(1) Blackmagic Design ATEM 1 M/E Advanced Panel
(2) HR824 MK2 Studio Monitor
(2) BlackMagic Design SDI/HDMI Converters
(1) Netgear Prosafe/GS105/ Gigabit Switch
(2) Mac Desktops



Special Equipment Brought in by Performers

It is possible to use your own complete sound system in Spilman Auditorium. We can provide two electrical hook-ups for you to use, which includes one single-phase 100 amp outlet and one three-phase 200 amp outlet.



Lighting System Technical Notes

In order to best serve the needs of all of our events, we have some guidelines concerning the use of the equipment in Spilman Auditorium.

Due to the location of power connections, there are a limited number of places where fixtures may be placed.

Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.

Our system is versatile enough to handle many different kinds of moving fixtures and types of dimmers as long as they are DMX compatible.

Remember that programming time is normally at a minimum, so using extra fixtures may or may not be possible unless we have the equipment well ahead of time.

Our system is versatile enough that if an event wants to bring in their own console or computer with lighting software and hardware, we can adapt to allow the event’s lighting designer to patch into our system. However, that would render our system useless to be able to accommodate the outside equipment.



Video System Technical Notes

Other video configurations may be considered if time allows before AND after an event. When events are scheduled closely together, it is difficult to re-configure the video system, but we will work with the Event Planner to find the best solution possible.

Other computers may be brought in for PowerPoint or some other presentation program. You must bring your own HDMI adapter if needed.



Cue System

A “house intercom system” with several headsets is available. Intercom headsets can be positioned at or near any mic input in the auditorium. They can be used by Crew and Program personnel during programs to aid with program cues and directions. If the event should require these, the Ridgecrest technical staff must be made aware of this request at least two weeks prior to the event.



Curtains

The main curtain is maroon color and can be closed when the stage apron area is to be used. There is a white cyc curtain that can be used in front of the back wall of the stage. Several black “legs” hang in the backstage area to mask instruments and activity backstage.



Rigging

Five rigging trusses are located on stage. Three of our trusses are used for our current light positions and cannot be used to hang banners. All rigging points are motorized and easily controlled.



Banners

All banners should have grommets (eyelets sewn or attached at the edges) – one in each corner and all along the top with a maximum distance of 24 inches between grommets. Banners with only a sleeve sewn into the top will sag in the middle. Only banners less than 15 feet side to side can be hung in front of the main curtain. Larger banners up to a maximum length of 40 feet (side to side) must be hung from the third or fifth rigging truss. Larger banners can sometimes interfere with backstage lighting.



Instruments

The auditorium features a Yamaha AvantGrand N3X grand piano. This piano remains on stage at all times. Please submit a special request along with your stage plot and input list to use this piano with at least 2 weeks advance notice. No tuning fee is applicable or necessary as this is a digital hybrid grand piano.

A drum set, designed specifically for Spilman Auditorium, is available for rent. More information is available here.

The sound system has been designed to accommodate any type of organ that is brought in by the vendor. We have worked with Allen Organs to design an organ-friendly system that can interface with any type of organ. We will only need an XLR or 1/4” output from the organ.



Emergency Situations

In case of power failure, an emergency generator will power a few emergency auditorium lights, exit lights and stairwell lights. The generator does not supply electricity to the sound and stage lighting. North Carolina State law requires Event Planners to notify event attendees of the location of emergency exits in their meeting space.



Spilman Auditorium Statistics

Interior Dimensions — 163’ x 95’
(rear wall to back stage wall x side wall to side wall) — 163’ x 95’
Foyer — 18’ x 95’
Front Porch — 21’ x 95’
Ceiling Height (from main floor – average) — 30’
Main floor to Ceiling under Balconies — 11’ 6”
Distance between Side Balcony — 56’
Length of Side Balconies (from stage end to rear balcony) — 102’



Stage Area

Height of Stage from Main Floor — 3’ 6”
Stage to front row — 10’ 10”
Apron Depth (edge of stage to main curtain) — 15’ 6”
Full Apron Width (at main curtain) — 55’
Full Stage Depth (edge of the stage to back of stage wall) — 33’ 6”
Position of First Rigging point (front edge of stage) — 15’ 3”
Position of Second Rigging Point (from front edge of stage) — 22’ 6”
Proscenium Arch (main curtain fully opened-width x height) — 46’ 19’
Backstage Width — 60’ 4”
Stage Ceiling Height
(Average stage floor to lighting bars, catwalk, etc.) — 21”
Video Projection Screen Size (3) — 10’ H x 17’ W
Stage to Front Lighting Bar — 21’
(Front edge of stage to a point perpendicular to lighting instruments)

Technical Form
This completed form must be returned to your Event Coordinator at least two weeks prior to your event in order for our team to fulfill the needs of your event.

MM slash DD slash YYYY

Stage Needs (Please fill in all that apply):

Choir: Chair risers are available for up to 150 people

64 stage inputs and 8 monitor mixes available

Band: Instruments for your event can be rented through your Event Coordinator. If renting equipment please let us know 16 days in advance.

Please send in any Input List, Stage Plot, and Tech Rider the band may have.

The use of all audio visual equipment in Spilman Auditorium is $250 per day and includes all necessary audio visual technicians. Any technician required to stay after quiet hours will be charged at $50 per person, per hour. Please contact A/V Conference Services to discuss your audio visual needs.

Acceptance

Ballroom: 500 capacity
Boardroom: 1 room, seating for 12
Classrooms: 5 to 23 rooms based on desired partition usage

Located in the heart of Ridgecrest Conference Center, Johnson Spring is our flagship meeting facility, providing various meeting options for your large or small group. This 46,250 square foot state-of-the-art facility gives meeting planners the utmost flexibility to ensure a successful meeting, convention, or retreat. Johnson Spring connects our campus with covered walkways and elevators for easy access between sleeping rooms, meeting rooms and the dining room.

Technical Rider

Sound System

Mixer:
Midas M32

Outputs:
Mix LR: Main LR Outputs
Bus 1-5 – FOH Monitoring Sends
Bus 13-16 – FX
M/C – Subs

Stage Monitors:
Wedges Available Upon Request
(5) Monitor Mixes Total
(3) Sennheiser ew 300 IEM G3 Systems

We have two monitor channels and three In-ear monitors that can be simultaneously used

Speakers:
Main Fills: LR (4) EAW NT29
Sub Woofers: (2) EAW NT22

Processing Gear:
Floor Position: Digital signal processing is supplied via the Midas M32.

Input Devices:
(4) Shure ULX Series Wireless Handhelds
(2) Shure ULX Series Wireless Body Packs
Wired Microphones: Other types are available upon request.

Johnson Spring 2 A-C has a total of 16 inputs supplied via the Behringer S16 digital stage box at the stage. Local inputs are supplied at Front of House.



Lighting System

Console:
LSC Stage Setter 8 Channel with DMX Wireless Transmitter

Non-moveable Fixtures:
(4) COLORdash Par- Hex lighting fixtures.

Dimmers:
(1) Leprecon ULD-360-HP with Wireless DMX Receiver

Lighting System Technical Notes:
Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.



Video Systems

Projection/Screen:
DVS Optic-3X LED wall with a resolution of 1880×600

Switching Gear:
(1) Kramer VP-734 Scaler/Switcher



Emergency Situations

In case of power failure, an emergency generator will power a few emergency auditorium lights, exit lights and stairwell lights only. The generator does not supply electricity to the sound and stage lighting. North Carolina State law requires Event Planners to notify event attendees of the location of emergency exits in their meeting space.



Johnson Spring 2 A-C Statistics

Interior Dimensions (rear wall to backstage wall x sidewall to sidewall) — 120’ x 68’
Ceiling Height (from main floor – average) — 12’
Seating Capacity (depends on room set-up) — 400 – 600



Stage Area

Height of Stage from Main Floor — 2’
Stage Ceiling Height — 10’
Video Projection Screen Size (2) — 9’ H x 12’ W
Portable Staging (9 pieces) — 12’ x 24’

Technical Form

This completed form must be returned to your Event Coordinator at least two weeks prior to your event in order for our team to fulfill the needs of your event.

MM slash DD slash YYYY

Stage Needs (Please fill in all that apply):

16 digital total stage inputs and 5 monitor mixes available

Band: Instruments for your event can be rented through your Event Coordinator. If renting equipment please let us know 16 days in advance.

Please send in any Input List, Stage Plot, and Tech Rider the band may have.

Projection: It is our understanding that you will supply a computer.

Format (Please bring your VGA adapter)
Acceptance

Auditorium: 214 capacity, theater-style fixed seating
Boardroom: 1 room, seating for 12
Classrooms: 5 to 8 rooms based on desired partition usage

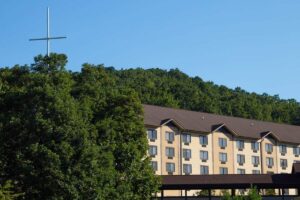

Mountain Laurel has meeting space and an auditorium ideal for mid-sized events. The ground floor features five spacious classrooms equipped with easy-to-adjust partitions for small or large groups. The flexibility of Mountain Laurel makes it ideal for group meetings, teaching sessions, boards of directors’ meetings, conferences or seminars. A small, private conference room is also available near the classrooms when a quiet atmosphere is desired.

Jim Henry Auditorium offers theater-style meeting space. With 214 tiered seats and gently sloping floors, it offers excellent visibility from virtually every seat in the room. Several widescreen monitors coupled with the latest in computerized audio systems make this a premier teaching facility. It is conveniently located steps away from Mountain Laurel’s hotel rooms and conveniently located on campus, adjacent to Johnson Spring and the ARC.

Technical Rider

Sound System

Mixer:
Behringer X32

Processing Gear:
Ashly Audio ne4800 Network-Enabled Protea DSP Processor

Amplifiers:
(2) Crown CH/Series
(1) Ashly PE-1800 Series

Input Devices:
(2) Shure ULX Wireless Lapels
(2) Shure ULX Wireless Handhelds
Wired Microphones: Available upon request

Speakers:
Main Speakers: (3) JBL MS28
Loudspeaker

Delay Fills:
(15) JBL Control 24CT; (4) JBL Control 19CS



Video System

Projector:
(2) Eiki LC-XL 100 – 5000 Lumens
Native Resolution 4:3

Screen:
(2) Da-Lite 7’ x 5’3”

Video Sources:
*Video sources may be added depending on switching inputs and availability of equipment.

Video Line Locations:
(1) Stage Input
(1) Sound Booth Input

Video Switching Gear:
(1) Kramer VP-729 Scaler/Switcher



Lighting System

Console:
LSC Stage Setter 8 Channel with DMX Wireless Transmitter

Non-moving fixtures:
(2) Par 46 Can Lights

Lighting System Technical Notes:
Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.



Special Equipment Brought in by Performers

It is possible to use your own equipment or complete sound system in Jim Henry, but we do not recommend this option since we are unable to supply any power except the 110 volts that is found on stage.



Technical Notes

Other video configurations may be considered if time allows before AND after an event. When events are scheduled closely together, it is difficult to re-configure the video system, but we will work with the Event Planner to find the best solution possible.

Other computers may be brought in for PowerPoint or some other presentation program. You must bring your own VGA adapter if a Mac is being used.



Lighting Technical Notes

The auditorium is not equipped with a lighting bar. Only the house lighting is available.



Emergency Situations

In case of power failure, an emergency generator will power a few emergency auditorium lights and exit lights. The generator does not supply electricity to the sound and stage lighting. North Carolina State law requires Event Planners to notify event attendees of the location of emergency exits in their meeting space.



Jim Henry Statistics

Interior Dimensions (rear wall to backstage wall x sidewall to sidewall) — 59’ 6” X 48’ 8”
Ceiling Height (from floor to center of roof) — 11’ 9”
Seating Capacity — 214



Stage Area

Height of Stage from Main Floor — 1’ 9”
Full Stage Depth (center edge of stage to back wall) — 10’ 2”
Full Stage Width — 39’
Stage Ceiling Height — 10’
Video Projection Screen Size (2) — 7’ X 5’ 3”

Technical Form
This completed form must be returned to your Event Coordinator at least two weeks prior to your event in order for our team to fulfill the needs of your event.

MM slash DD slash YYYY

Stage Needs (Please fill in all that apply):

9 stage inputs and 1 monitor mix available

Band: Instruments for your event can be rented through your Event Coordinator. If renting equipment please let us know 16 days in advance.

Please send in any Input List, Stage Plot, and Tech Rider the band may have.

Projection: It is our understanding that you will supply a computer.

Format (Please bring your VGA adapter)
Acceptance

Auditorium: 300 capacity
Classrooms: 2 to 7 rooms based on desired partition usage

The Rhododendron/Dogwood complex offers flexibility and functionality with its spacious classrooms and auditorium, as well as its centralized location. Event planners find this facility ideal for mid-sized events, such as meetings, teaching sessions, conferences or banquets and receptions. It is connected to Rhododendron and the dining room, so guests can come and go with ease.

The Dogwood meeting rooms are just above the dining room. Adjustable partitions can vary dimensions from 2 to 7 rooms to accommodate your specific needs. Rhododendron Auditorium is a flexible seating facility for up to 320 people and features an analog audio system and a 4:3 ratio single-screen projection system.

Technical Rider

Sound System

Mixers:
Allen & Heath QU-16

Input Devices:
(2) Shure ULXP4 Receiver and Beta 87A Wireless Handheld Microphones
(1) Shure ULXP4 Receiver and Wireless Body Pack
Wired Microphones: Available upon request
Tascam CD-160 MKII

Stage Monitors:
Wedges Available
(4) Monitor Mixes Available

Speakers:
Mains: (2) EAW LA460 series
Sub Woofer: (1) Community Sub

Amplifiers:
(1) QSC CX1202V Direct 70V
(1) Mackie m1200
(1) Mackie m2600

Processing Gear:
(1) DriveRack® PA Equalization &
Loudspeaker Control System Process



Lighting System

Console:
NSI MC 7008 Memory Lighting Console

Non-Moving Fixtures:
(4) Par 46 Can Lights
(1) Par 56 Can Light
(4) American DJ Mega Panel LED

Lighting System Technical Notes:
Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.



Video System

Projector:
(1) Hitachi CP-X615 LCD (4000 Lumens)
Native Resolution 1024×768

Screen:
(1) Da-Lite 7’6”x10’

Switching Gear:
(1) Kramer VP-724XL Switcher/Scaler

Video Sources:
*Video sources may be added depending on switching inputs and
availability of equipment.



Emergency Situations

In case of power failure, an emergency generator will power a few emergency auditorium lights, exit lights and stairwell lights. The generator does not supply electricity to the sound and stage lighting. North Carolina State law requires Event Planners to notify event attendees of the location of emergency exits in their meeting space.



Rhododendron 1 A-C Statistics

Interior Dimensions (rear wall to backstage wall x sidewall to sidewall) — 97’ x 51’
Seating Capacity — 350 – 400



Stage Area

Height of Stage from Main Floor — 1’ 9”
Height of Ceiling from Stage Floor — 10’ 6”
Full Stage Depth (center edge of stage to back wall) — 11’ 6”
Full Stage Width — 37’
Video Projection Screen Size (1) — 7’ 6” X 10’

Technical Form
This completed form must be returned to your Event Coordinator at least two weeks prior to your event in order for our team to fulfill the needs of your event.

MM slash DD slash YYYY

Stage Needs (Please fill in all that apply):

Up to 12 stage inputs and 2 monitor mixes available

Band: Instruments for your event can be rented through your Event Coordinator. If renting equipment please let us know 16 days in advance.

Please send in any Input List, Stage Plot, and Tech Rider the band may have.

Projection: It is our understanding that you will supply a computer.

Format (Please bring your VGA adapter)
Acceptance

Auditorium: 700 capacity
Room Size: 100×100

Ridgecrest’s ARC is a prime location for large-group sessions with advanced audiovisual and lighting equipment, widescreen monitors, projection screen and a large stage—all complementing this versatile venue. This facility offers unique flexibility as an auditorium, seating up to 700 people. Create great sound with state-of-the-art audio and video projection capabilities perfect for big bands. The ARC is located adjacent to Maple, Walnut and Woodland.

Diagrams & AV Equipment Rentals
Technical Rider

Sound System

Mixers:
Midas M32 (digital)

Processing Gear:
Built into M32

Input Devices:
(2) Shure UC Series UHF Wireless Body Packs/Headsets
(2) Shure SM87A Wireless Handhelds
Wired Microphones: Available upon request

Stage Monitors:
There are 8 Aviom 16ii units that have 12 channels. We can also use two monitor channels, but it will use 2 channels from the Aviom units limiting us to 10 channels for the Avioms

Speakers:
(4) EAW AX 366
(2) EAW UB82e
(2) EAW MK2394
(2) Danley TH-115



Lighting System

Console:
Vista S1 Control surface with Vista 3 by Chroma-Q on a Windows Computer

Dimmers:
(2) NSI DS824 Rack Dimmers

Non-Moving Fixtures:
(10) ETC Ellipsoidal Pars
(4) Blizzard Rokbox EXA
(1) ETC Selador Paletta 42

Moving Fixtures:
(2) Martin Mac 250 Washes
(6) Martin Krypton 250 Spots

Lighting System Technical Notes:
Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.



Video System

Screen:
(1) Fixed Da-Lite 12’3” x 21’ centered on back wall

Projector:
(1) Eiki LC-X7 Projector (9000 Lumens) 1024×768 Resolution

Video Sources:
*Sources may be added depending on switching inputs and availability of equipment.

Video Line Locations:
(1) VGA line from floor pocket in the front of stage (for video input from computer)
(1) VGA input from booth area in floor pocket
(1) Cat5-link for video monitor on stage



Special Equipment

It is possible to use your own complete sound system in the ARC. We can provide two electrical hook-ups for you to use, which includes one single-phase 100 amp outlet and one three-phase 200 amp outlet.



Lighting System Technical Notes

Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.

If there is plenty of time before AND after an event, slight adjustments to the lighting may be possible. Most of the time, this will not be the case due to time limitations between events.

Our system is versatile enough that if an event group wants to bring in their own console or computer with lighting software and hardware, we can adapt to allow the event’s lighting designer to patch into our system.



The ARC Statistics

Interior Dimensions — 100’ x 100’
(rear wall to back stage wall x side wall to side wall)
Ceiling Height (from floor to center of roof) — 30’
Seating Capacity — 700



Stage Area

Height of Stage from Main Floor — 4’ 11”
Full Stage Depth (center edge of the stage to back wall) — 24’
Full Stage Width — 62’
Video Projection Screen Size — 12’ 3” x 21’

Technical Form
This completed form must be returned to your Event Coordinator at least two weeks prior to your event in order for our team to fulfill the needs of your event.

MM slash DD slash YYYY

Stage Needs (Please fill in all that apply):

28 stage inputs and 2 monitor mixes + 8 Avioms available

Band: Instruments for your event can be rented through your Event Coordinator. If renting equipment please let us know 16 days in advance.

Please send in any Input List, Stage Plot, and Tech Rider the band may have.

Projection: It is our understanding that you will supply a computer.

Format (Please bring your VGA adapter)
Acceptance

Classrooms: 11 rooms on 2 floors, 45-50 capacity each

Event planners will find our modern Ivy classrooms perfect for conference, seminar, and retreat breakout needs. Ivy offers 11 breakout rooms on two floors. Arranged in theatre-style seating, each room accommodates up to 50 people. Built-in screens and projectors make it easy for presenters, and a covered natural patio overlooking the Ivy firepit is available for breaks and catering space. Ivy is centrally located on the west side of Ridgecrest’s campus between Mountain Laurel and Pritchell guest rooms and Spilman and Lambdin Auditoriums.

Diagrams & AV Equipment Rentals

Auditorium: 450 capacity, chair seating
Classrooms: 4 rooms, capacity 36-50 each

Lambdin is a perfect venue when your group wants some great sound. Located behind the Spilman facilities, Lambdin’s recently-remodeled interior is equipped with a digital audio system and widescreen format projection system. Lambdin can be arranged with theater-style seating for up to 450. The stage platform is big enough for a small band, choir and speakers. This facility also includes 4 adjacent breakout rooms, which can hold 36-50 people each. Lambdin is perfect for event planners who want all of their space in one building and prefer a more private, intimate setting for their event. Tens of thousands of students recall fond memories made in Lambdin. Your group is about to make even more!

Diagrams & AV Equipment Rentals
Technical Rider

Sound System

Mixer:
Behringer X32 – 32 channels (24 channels on stage)

Stage Monitors:
(8) Aviom A-16II Personal Mixers [Wired] (musicians must supply their own ear buds)

Speakers:
(2) QSC K12
(2) QSC K10
(1) Danley TH-115
Processing Gear:
Built into Behringer X32

Input Devices:
(2) Shure SM87A wireless handheld mics
(2) ULX Headset mics
Wired Microphones: Available upon request



Lighting System

Non-Moving Fixtures:
(4) Blizzard RokBox 5 RGBA W



Lighting System Technical Notes

Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.



Video System

Projector:
(1) Eiki LC-xl-100 (5,000 Lumens)
Native Resolution 1024×768

Switching Gear:
(1) Kramer VP-719XL Switcher/Scaler



Video System Technical Notes

The only input available in this venue is VGA. Other input types can be accommodated with a VGA adapter. Please bring such adapter(s) as needed.



Emergency Situations

In case of power failure, an emergency generator will power a few emergency auditorium lights and exit lights. The generator does not supply electricity to the sound and stage lighting. North Carolina State law requires Event Planners to notify event attendees of the location of emergency exits in their meeting space.



Lambdin 1 A-C Statistics

Stage Area:
Full Stage Depth (center edge of stage to back wall) — 16’ 8”
Full Stage Width — 44’ 3”
Height of Stage from Main Floor — 31’
Height of Ceiling from the Stage Floor — 14’
Video Projection Screen Size — 16’ x 9’
Interior Dimensions of Auditorium — 88’ 6” x 73’
Seating Capacity — 450

Technical Form
This completed form must be returned to your Event Coordinator at least two weeks prior to your event in order for our team to fulfill the needs of your event.

MM slash DD slash YYYY

Stage Needs (Please fill in all that apply):

24 stage inputs and 8 Avioms available

Band: Instruments for your event can be rented through your Event Coordinator. If renting equipment please let us know 16 days in advance.

Please send in any Input List, Stage Plot, and Tech Rider the band may have.

Projection: It is our understanding that you will supply a computer.

Format (Please bring your VGA adapter)
Acceptance

Auditorium: 200 capacity
Room Size: 55’ × 36’

Quietly tucked away behind towering maples and oaks sits this charming 200-seat wood and stone auditorium. One of Ridgecrest’s highest points, the traditional reverence of Rutland’s interior is complemented by the beauty visible through the many large glass windows. Warm, wooden beams add character to this uniquely wonderful auditorium. Rutland provides sound and video projection capabilities.

Diagrams & AV Equipment Rentals
Technical Rider

Sound System

Mixer:
Allen & Heath SQ-5 48-Channel / 36-Bus Digital Mixer

Input Devices:
(2) Shure UC Series Wireless Handheld
(1) Shure UC Series Wireless Body Pack & Headset

Stage Monitors:
(2) QSC E10 Stage Monitors (only 1 monitor mix available)

Speakers:
Mains: (2) EAW KF300e
Subs: (2) JBL MPRO MP418S

Amplifiers:
1 Mackie FR Series M2600
1 Powersoft X4
1 QSC CX302V
1 QSC PLX 2402

Processing Gear:
Built into amplifiers and SQ5



Lighting System

Lighting System Technical Notes:

(4) Electralite Stingray Mini, 60 Watt fixtures
(3) Electralite Fresnel RGBW, 350 Watt fixtures

Our lighting fixtures are set up so that we may effectively serve all events we host. As such, we do not offer an option to move these fixtures.



Video System

Projection:
LED Wall (11.6”W x 6.4”H)

Screen:
(1) Da-Lite 9’ x 12’

Switching Gear:
(1) Inline IN1403

Video Sources:
*Video sources may be added depending on switching inputs and availability of equipment.

Video Line Locations:
HDMI located in the booth runs to the LED Wall



Special Equipment Brought in by Performers

It is possible to use your own equipment or complete sound system in Rutland, but we do not recommend this option since we are unable to supply any power except the 110 volts that is found on stage.



Technical Notes

Other video configurations may be considered if time allows before AND after an event. When events are scheduled closely together, it is difficult to re-configure the video system, but we will work with the Event Planner to find the best solution possible.



Emergency Situations

In case of power failure, an emergency generator will power a few emergency auditorium lights and exit lights only. The generator does not supply electricity to the sound and stage lighting. North Carolina State law requires Event Planners to notify event attendees of the location of emergency exits in their meeting space.



Rutland Chapel Statistics

Interior Dimensions — 55’ x 36’
(rear wall to backstage wall x sidewall to sidewall) — 36’
Ceiling Height (from floor to center of roof) — 22’ 6”
Seating Capacity (chairs) — 250 – 300



Stage Area

Height of Stage from Main Floor — 55’ x 36’
Full Stage Depth (center edge of stage to back wall) — 36’
Full Stage Width — 22’ 6”
Stage Ceiling Height — 20’

Technical Form
This completed form must be returned to your Event Coordinator at least two weeks prior to your event in order for our team to fulfill the needs of your event.

MM slash DD slash YYYY

Stage Needs (Please fill in all that apply):

20 stage inputs and 1 monitor mix available

Band: Instruments for your event can be rented through your Event Coordinator. If renting equipment please let us know 16 days in advance.

Please send in any Input List, Stage Plot, and Tech Rider the band may have.

Projection: It is our understanding that you will supply a computer.

Format (Please bring your VGA adapter)
Acceptance

Outdoor amphitheater: 250 capacity

The Crystal Springs Amphitheater is a welcome addition to the Ridgecrest meeting facilities. This outdoor amphitheater is located next to Spilman Auditorium to the left of our facility entrance. It seats up to 250 people, and is the ideal spot for an outdoor movie or concert. And there is plenty of green space for field games!

Audiovisual

Ridgecrest Conference Center’s auditoriums are equipped with state-of-the-art audiovisual and sound equipment perfect for general sessions, concerts, worship events and conferences. For breakouts and teaching sessions, many of our meeting spaces come with audiovisual and sound equipment to make presenting easier.

Our group coordinators will work with you to ensure you have just what you need. Whether your group has 20 or 2,000, you will get the support of our on-site audiovisual team needed to be truly successful.

AV Technicians are currently unavailable outside of Spilman Auditorium.

Presentation Equipment & Supplies

Whiteboard with markers – $5
Flipchart with easel and markers – $20

(prices per event, includes delivery and set-up)

Audiovisual Equipment
  • Wired mic with stand and cable – $20
  • Built-in video projector with screen – $50 (only available in select rooms)
  • Screen – $20
  • Piano keyboard – $95
  • 65-inch LCD television – $50

(prices per event, includes delivery and set-up)

Exhibit and Display Tables

$35.00 per table with cloth and 1 chair, electrical outlet provided.

Delivery Fees

$5.00/box or $75.00/pallet. An additional 20% service charge will apply to shipments that arrive at Ridgecrest outside of normal business hours. (Monday–Friday, 8:00 a.m. to 5:00 p.m.)

Spilman Auditorium Only

Use of Spilman Auditorium requires an Audiovisual technician (light and sound) at $250.00 per day. If you are running media, you will need to provide your own computer. You may request a Ridgecrest Audiovisual technician to run your media at an additional rate of $50 per hour.

Digital piano – Yamaha Avantgrand N3X (This piano remains on stage at all times.)

Drum Kit – $550 per event

Anchor Drums (Galleon Series, [Mahogany & Poplar])
14″ x 6.5″ Snare Drum
13″ x 9″ Tom
16″ x 16″ Floor Tom
18″ x 16″ Floor Tom
20″ x 18″ Kick Drum

Zildjian A Custom Cymbals
14″ HiHats
16″ Crash
18″ Crash
20″ Medium Ride

DW, Pearl, Gibraltar, Hardware
DW 3000 Series Single Kick Drum Pedal
DW 3000 Series Snare Stand
DW 3000 Series HiHat Stand
DW 3700 Series Cymbal Stands
Pearl 900 Series Tom Stand
Gibraltar Floor Tom Legs

A/V and Conference Services & Policies

For each function, each room includes a free initial set-up. Additional room changes are subject to a fee of $100 per change during normal business hours (plus our standard 20% service charge). Room changes requested to be made after 8:00 pm or before 8:00 am are subject to a fee of $500 per change (plus our standard 20% service charge).

Meeting room changes require a minimum of 1 hour to change set-up for meetings and a minimum of 2 hours for catering.

Audiovisual equipment is available for rent from Ridgecrest on a first come, first-served basis. Pricing is per item per day.

Ridgecrest does not provide A/V technicians to run media. If you are running media, you will need to provide your own computer.

Wi-fi is available in most areas of the conference center with the exception of our youth dorms.

Audiovisual equipment rates quoted do not include 20% service charge.

Recreation

RECREATION AREA

Many of Ridgecrest’s recreational activities are available to our guests at no additional charge. Equipment is available complimentary for guests to check out at either the main Rec Shack (near the recreation fields) or at the registration desk in Pritchell. Guests will only be charged if the equipment is damaged or not returned, replacement value only. Hours of operation for the Rec Shack vary by season and campus occupancy.

Complimentary recreational options include:

  • Softball
  • Basketball (gymnasium)
  • Tennis
  • Volleyball (gymnasium or outdoor sand)
  • Fishing (bring own gear)
  • Disc Golf

For a modest fee, we offer:

  • Miniature Golf ($4 per guest)
  • Wii Rental ($75 per day)
  • Fire Ring ($75 per use, reserved through Event Coordination)

ADVENTURE RECREATION

High Adventure & Teambuilding at Ridgecrest (summer only)

Adventure recreation includes a climbing tower, a high ropes course and laser tag among the thick foliage and trees.

(Pricing:

High Ropes Course- $35/person
Climbing Tower/Zipline- $20/person
Laser Tag- $18/person

Minimum # of people: 10
Maximum # of people in group: 25)

Each outdoor experience is facilitated by trained leaders of Ridgecrest’s Adventure Recreation Staff. This is a perfect opportunity for youth and adult groups to build memorable and rewarding times into their camp program. It’s also a great way to have some fun and fellowship!

Advanced reservations are required a minimum of two weeks prior to your event. All recreation activities are first-requested, first-served.

Call our Rec Staff to learn the details of these exciting opportunities at (828) 669.4844 or submit a recreation form request below.

MM slash DD slash YYYY

Submissions must be received no later than 2 weeks prior to your request.

Submission of a recreation request does not guarantee the availability of recreation requested.

Acceptance



Release Form Requirements

You must be at least 10 years old to participate. Youth 17 years and younger require a form signed by a parent or legal guardian prior to participating in Adventure Recreation activities.

Please print and fill out the Ridgecrest Waiver Form below in order to participate.

DOWNLOAD WAIVER FORM



Scott Darnell
Recreation Coordinator
(828) 669.4844
Scott.Darnell@ridgecrestnc.com

HIKING

Hike the Blue Ridge Mountains right outside your door. Choose from five different hikes among white oaks and red maples, with mountain laurel that grows so thick in places, it creates a lush umbrella over the entire pathway. Trails range from easy to moderately difficult, but each affords spectacular views from scenic vantage points.

The Ridgecrest Trail System is located on private property. All guests must register at the Main Entrance and agree to all rules and regulations when hiking on Ridgecrest Conference Center’s property.

RECREATION AREA

Many of Ridgecrest’s recreational activities are available to our guests at no additional charge. Equipment is available complimentary for guests to check out at either the main Rec Shack (near the recreation fields) or at the registration desk in Pritchell. Guests will only be charged if the equipment is damaged or not returned, replacement value only. Hours of operation for the Rec Shack vary by season and campus occupancy.

Complimentary recreational options include:

  • Softball
  • Basketball (gymnasium)
  • Tennis
  • Volleyball (gymnasium or outdoor sand)
  • Fishing (bring own gear)
  • Disc Golf

For a modest fee, we offer:

  • Miniature Golf ($4 per guest)
  • Wii Rental ($75 per day)
  • Fire Ring ($75 per use, reserved through Event Coordination)

ADVENTURE RECREATION

High Adventure & Teambuilding at Ridgecrest

Adventure recreation includes team-building exercises, a climbing tower, a high ropes course and laser tag among the thick foliage and trees.

Each outdoor experience is facilitated by trained leaders of Ridgecrest’s Adventure Recreation Staff. This is a perfect opportunity for youth and adult groups to build memorable and rewarding times into their camp program. It’s also a great way to have some fun and fellowship!

Advanced reservations are required a minimum of two weeks prior to your event. All recreation activities are first-requested, first-served.

Call our Rec Staff to learn the details of these exciting opportunities at (828) 669.4844 or submit a recreation form request below.

MM slash DD slash YYYY

Submissions must be received no later than 2 weeks prior to your request.

Submission of a recreation request does not guarantee the availability of recreation requested.

Acceptance



Release Form Requirements

You must be at least 10 years old to participate. Youth 17 years and younger require a notarized release form signed by a parent or legal guardian prior to participating in Adventure Recreation activities.

Please print and fill out the Ridgecrest Waiver Form below in order to participate.

DOWNLOAD WAIVER FORM



Scott Darnell
Recreation Coordinator
(828) 669.4844
Scott.Darnell@ridgecrestnc.com

HIKING

Hike the Blue Ridge Mountains right outside your door. Choose from five different hikes among white oaks and red maples, with mountain laurel that grows so thick in places, it creates a lush umbrella over the entire pathway. Trails range from easy to moderately difficult, but each affords spectacular views from scenic vantage points.

The Ridgecrest Trail System is located on private property. All guests must register at the Main Entrance and agree to all rules and regulations when hiking on Ridgecrest Conference Center’s property.

Dining

Ridgecrest’s Dining Room offers three nutritious buffet-style meals daily. Our chefs select carefully planned menus prepared with high quality brands. The Dining Room was designed with efficiency in mind, and includes eight serving lines to accommodate large groups quickly. With seating capacity for over 1,000 people, 5’ round tables and 8’ rectangular tables provide guests with a comfortable setting for fellowship and conversation. The Dining Room is centrally located within Rhododendron, ensuring guests a short walk from virtually every lodging venue.

Dining Room Policies

Meal plans are fixed two weeks before the start of your event. Guests who haven’t selected a meal plan at the time of booking will have the option to purchase meals at our a-la-carte rates, based on availability, when they arrive. Unfortunately, we cannot offer refunds for missed meals.

Catering

Ridgecrest can help you design your custom banquet for a more intimate atmosphere with a wonderful variety of delicious menu selections. Our group coordinators will work with you to customize each banquet, reception, fellowship or break to meet your group’s specific needs.

All special catered events, including snack orders, fire rings, and recreation events, are scheduled through our Coordination Department. Simply contact your assigned Group Coordinator.

Menus and Pricing
Catering Policies and Guidelines
  • All catered events require a minimum of 20 guests and should be scheduled no later than 16 days prior to event.
  • Guaranteed numbers for all catered events are due to your Group Coordinator one week prior to event.
  • Events requiring labor after 10:00 p.m. will incur additional labor charges of $20/hour per staff person working the event.
  • Banquets in excess of 2 hours will incur additional labor charges of $20/hour per staff person working the event.
  • Catering rates do not include 20% service charge.
    A $250.00 fee applies to all catered events requested in any outdoor venues.
  • Food or beverages not catered by or purchased from Ridgecrest Conference Center are not permissible.
  • If a group would like to provide pre-packaged snacks for their attendees, the pre-packaged snacks need to be on the approved snack list and a $1/person fee will be charged for each person attending the conference/retreat. Please consult your Group Coordinator for approved snacks. If snacks or beverages are not approved and are brought into the conference space, the group will be charged a $250 fee per conference room where food is served, in addition to the $1 per person charge. Thank you for your cooperation.

Plan Your Event

Getting Here

Location

Ridgecrest is located 15 miles east of Asheville, North Carolina, on Interstate 40 at Exit 66. We are approximately 30 miles from the Asheville Regional Airport.

Physical Address

1 Ridgecrest Drive
Black Mountain, NC 28711

Distance From

  • Atlanta, GA - 3.5 hours
  • Birmingham, AL - 6 hours
  • Charlotte, NC - 2 hours
  • Cincinnati, OH - 6 hours
  • Columbia, SC - 2.5 hours
  • Jacksonville, FL - 7 hours
  • Knoxville, TN - 2 hours
  • Louisville, KY - 5.5 hours
  • Memphis, TN - 8 hours
  • New York, NY - 10.5 hours
  • Orlando, FL - 10 hours
  • Washington, DC - 7.5 hours

Airline Travel

Ridgecrest Campus Map

Sales Team & Group Coordinators

Our expert Sales Team is committed to working with your ministry to make your upcoming event the best it can be for you and your attendees. Ridgecrest Group Coordinators can assist you in all areas of planning your event from audiovisual requests, catering and pricing to conference room and auditorium set-up requirements and more. Your assigned Group Coordinator will be your primary contact once your agreement is assigned with the Conference Center and is the go-to person for all details concerning your meeting or event.

Melissa Inman

Director of Marketing, Sales, Events and Coordination

(828) 669.3596
melissa.inman@ridgecrestNC.com

Annette Frisby

Lindsay Toole

Deanna Coblentz

Caroline Myer

Gabe Presnell

Stay up-to-date with what's happening at Ridgecrest.
